Gas Metering and Control Packages

Polyexpim FZE / Our products / Metering Stations for Thermal Energy, Water, Oil and Gas

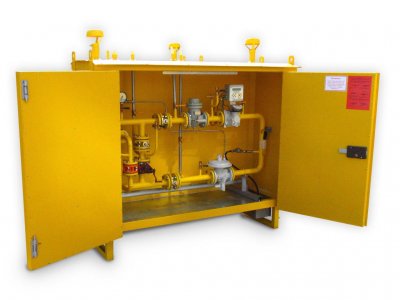

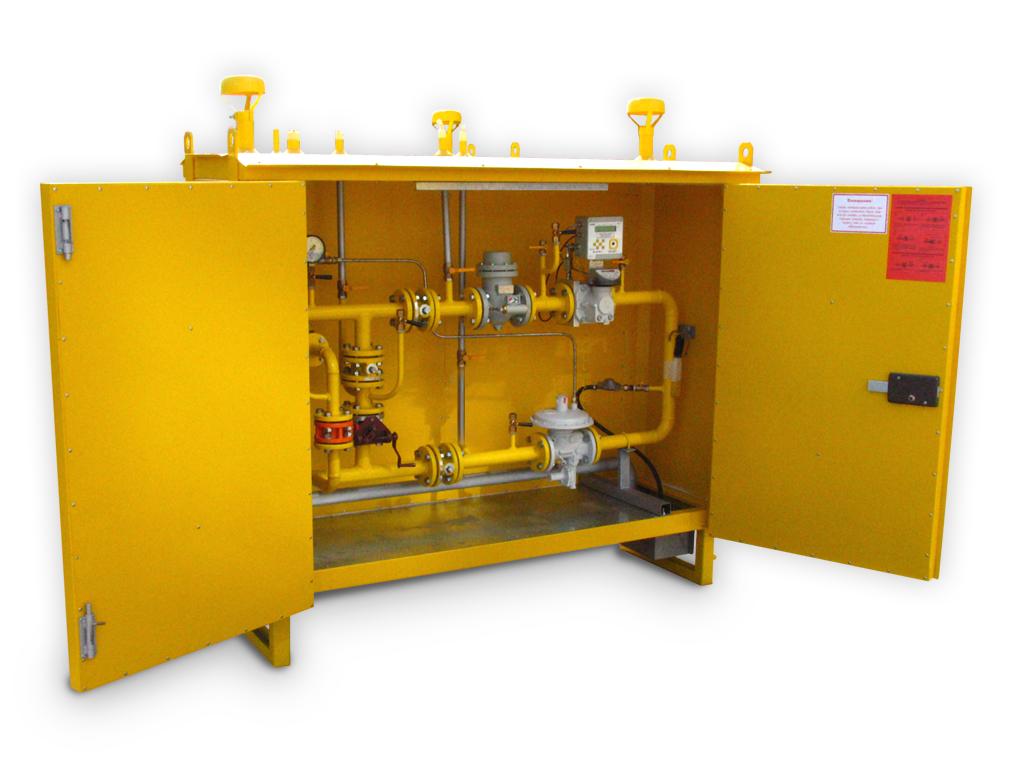

Measuring and regulating units (BMR) are designed for automatic on-line measurement of the mass (volume) of the consumed gas; distributing it for its intended purpose. BMRs are part of oil treatment plants, Pre-drainage plant or other surface installations of oil and gas companies.

Characteristics

Part of the equipment

The BMR includes the following equipment:

input filter unit;
unit for measuring the amount of gas with flow meters (volume or mass);
drainage system from pipelines;

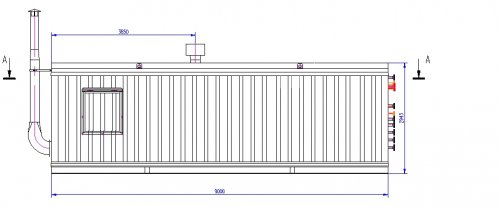

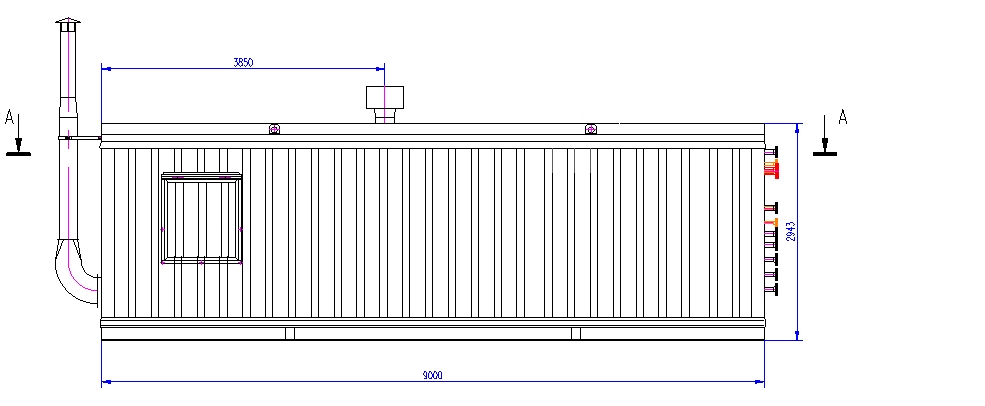

block box or base frame;
instrumentation.

Block-boxes are equipped with heating, ventilation, gas control and fire alarm sensors.
Upon separate request, the BMR is completed with a specialized device for processing data from primary transducers of flow, humidity, temperature, and pressure installed in the BMR.
Below is the BMR product line.

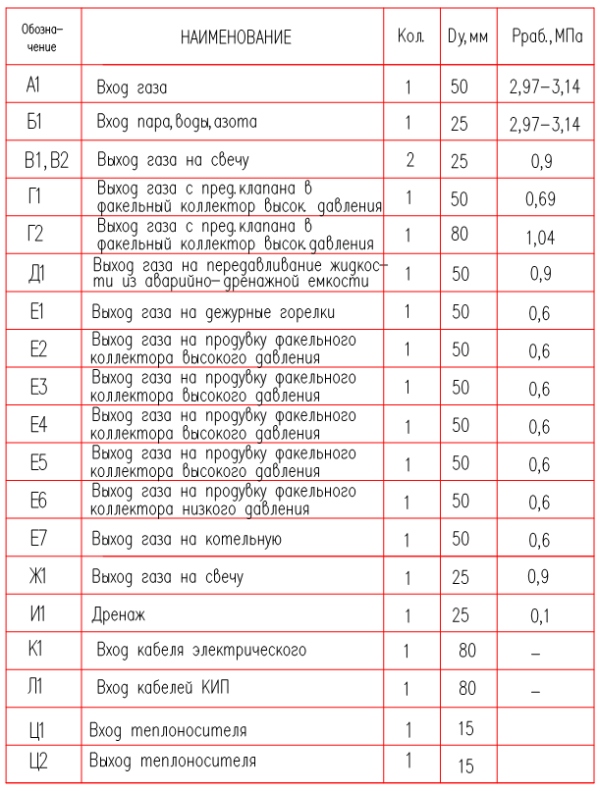

Обозначение

Climatic version U1 and HL1 operating temperature:

- for U1 - from minus 40 С;
- for HL1 - from minus 60 C.

Product Recording Example:

Measuring and regulating unit BMR-5000-U1 TU 3667-025-56562997-2008, where:

5000 – gas productivity, nm3/h.
U1 - climatic version.

Technical details

Options	Dimensions
	BMR-5000	BMR-10000	BMR-15000	BMR-20000	BMR-25000
Productivity, nm3/h	5000	10000	15000	20000	25000
Working pressure, MPa	1,0; 1,6; 2,5,4,0
Working temperature environment, oC	+5 ? +30
Number of measuring and control lines, pcs.	1 ? 8
Working environment	Associated petroleum gas
Service life, not less, years	20
