Test Separation Units
Separation of water and gas from oil allowing water to be transferred to a Modular Group Pumping Station.
A Mobile Test Separator is designed to meter well fluids from producing wells with liquid flow-rate of up to 500 m3/day, gas-oil ratio of up to 1500 nm3 per ton, operating pressure of up to 6,3 MPa, and with H2S concentration in reservoir oil of up to 6%.
The metering accuracy is up to 2% of oil and water mass, and up to 3% of gas volume during normal separation of liquid and gas phase.
Metering is carried out continuously and controlled by the local Process Control System based on industrial MCUs (microcontrollers) and a PC workstation. Data is stored and communicated electronically to the relevant engineering services. The metering system is based on high performance separation equipment and high-precision process control instruments.
The mobile package is mounted on an all-terrain triple-axle trailer.
A Mobile Test Separator is designed to meter well fluids from producing wells with liquid flow-rate of up to 500 m3/day, gas-oil ratio of up to 1500 nm3 per ton, operating pressure of up to 6,3 MPa, and with H2S concentration in reservoir oil of up to 6%.
The metering accuracy is up to 2% of oil and water mass, and up to 3% of gas volume during normal separation of liquid and gas phase.
Metering is carried out continuously and controlled by the local Process Control System based on industrial MCUs (microcontrollers) and a PC workstation. Data is stored and communicated electronically to the relevant engineering services. The metering system is based on high performance separation equipment and high-precision process control instruments.
The mobile package is mounted on an all-terrain triple-axle trailer.

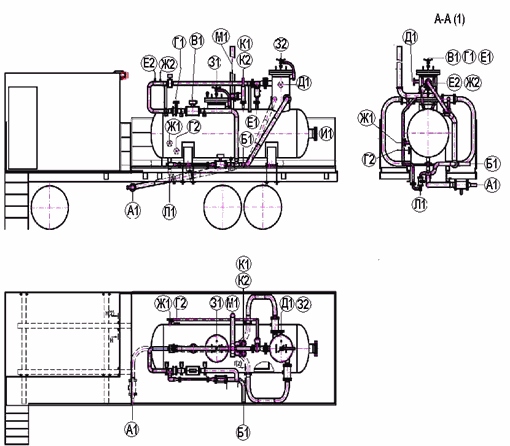

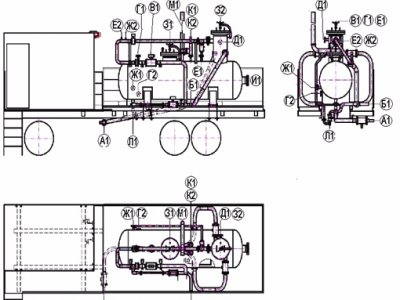

| А1 | Liquid-Gas Mixture Inlet |
| Б1 | Oil and Gas Outlet |
| В1 | Level Alarm |
| Г1 | Upper Level Limit |
| Г2 | Lower Level Limit |
| Д1 | Steam Inlet |
| Е1-Е2 | Pressure Sensor |
| Ж1-Ж12 | Temperature Sensor |
| З1-З2 | Manway |
| И1 | Inspection hatch/hole |
| К1-К2 | PSV |
| Л1 | Drainage |
| М1 | Drainage from PSV |
